Mevo Core
Product Image

Mevo Core is a 4K Micro Four Thirds live-streaming camera that empowers you to wirelessly stream and capture the moment, anywhere. Take your production to the next level and connect multiple Mevo cameras and stream directly to your favorite platform with the Mevo Multicam app.

TECH SPECS
BATTERY

Up to 6 hours @ 4K30p recording, 1080p30 streaming
Rechargeable/Replaceable lithium ion battery

LENS MOUNT TYPE

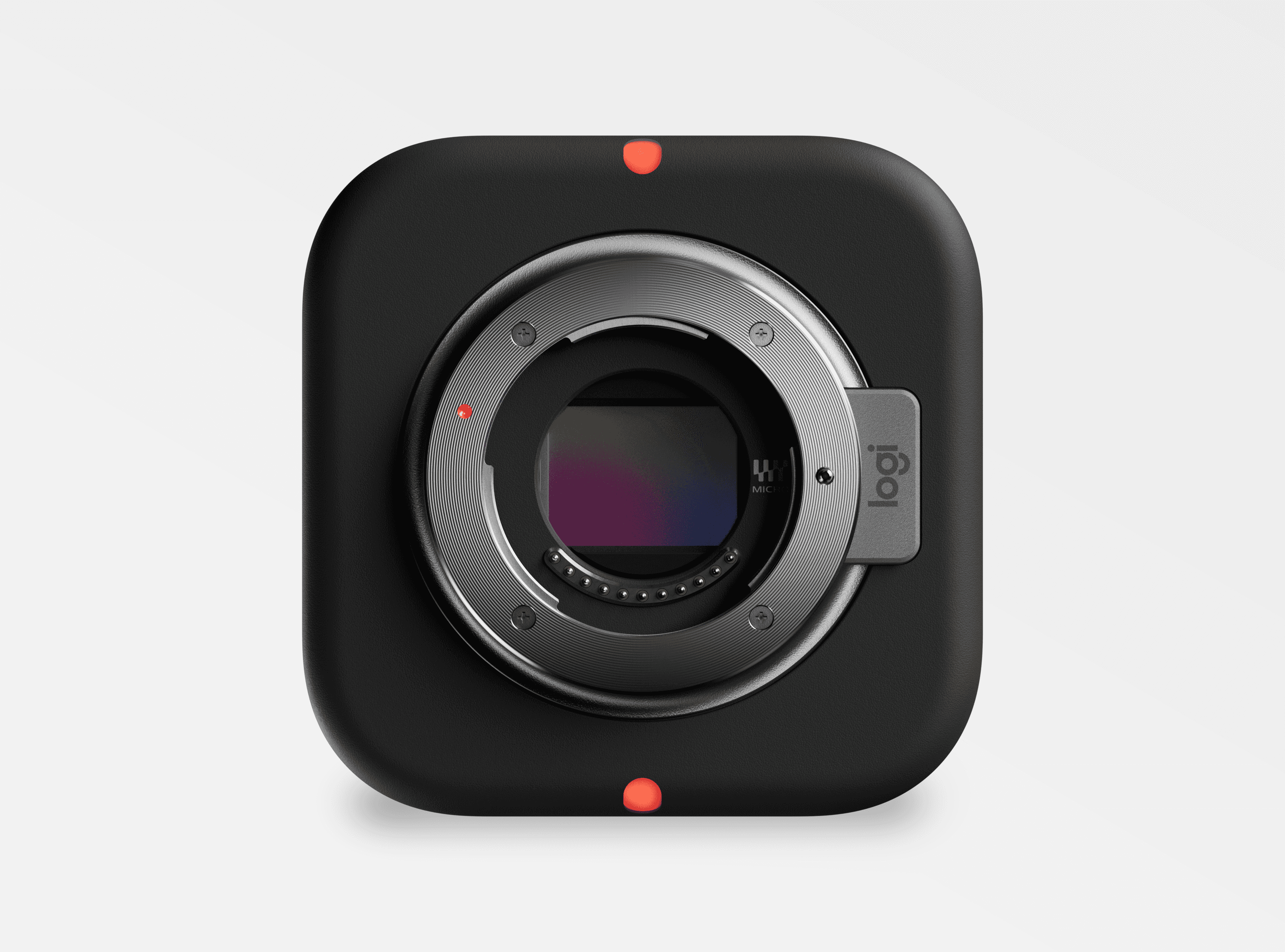

MICRO FOUR THIRDS lens mount

SENSOR

4/3 CMOS Sensor

SENSOR RESOLUTION

8.3 Megapixels

CAPTURE RESOLUTION

4K

FRAME RATE

30fps

WI-FI

Wi-Fi 6E

BLUETOOTH

BT 5.1

VIDEO
(MP4 RECORDING ONLY)

4K30p at 40Mbps
1080p30 at 20Mbps (Max 40Mbps)
720p30 at 10Mbps

VIDEO
(STREAMING)

1080p30 up to 6Mbps
720p30 up to 3.5Mbps
480p30 up to 1.5Mbps
360p30 up to 1Mbps

ASPECT RATIO

16:9

VIDEO CODEC

H.264 and HEVC recording up to 4k 30p

ELECTRONIC IMAGE STABILIZATION

Yes

VERTICAL IMAGE FLIP

Yes

HIGH-DYNAMIC-RANGE IMAGING

Yes

EXPOSURE METERING

Spot, Center, Average

WHITE BALANCE

Auto, Manual or presets

WHITE BALANCE PRESETS

Tungsten
Daylight
Cloudy
Fluorescent

EXPOSURE MODES

Auto, Shutter Priority, Manual

EXPOSURE COMPENSATION

-3 to +3 with 0.1 increments

VIDEO OUTPUT

NDI®-enabled
HDMI
SRT

RTMP SUPPORT

Yes

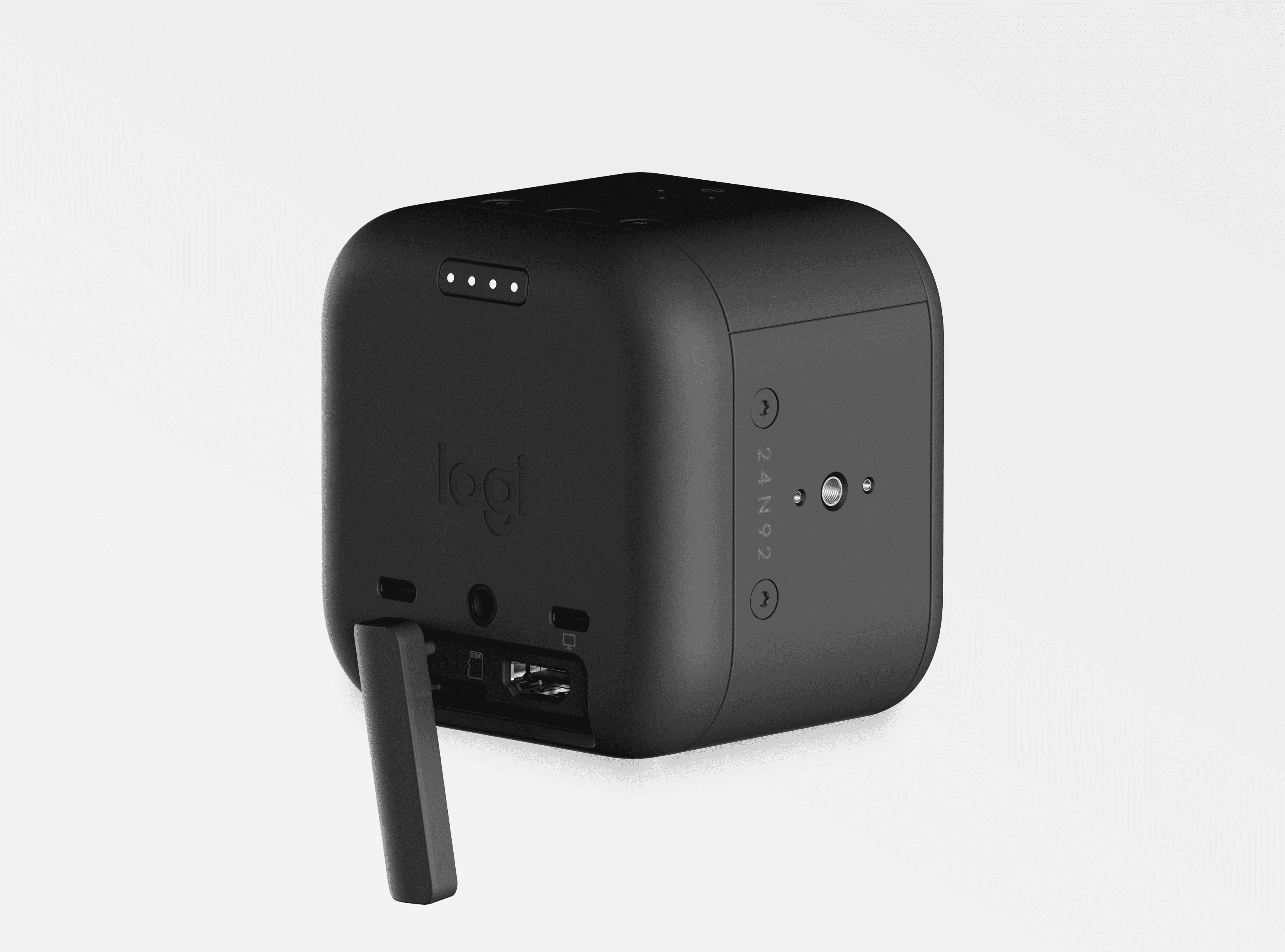

INTERFACES PROVIDED

2x USB-C
- One port allows for UVC (webcam)
1x HDMI output
1x 3.5mmTRS audio input
1x microSD card slot

BUILT-IN AUDIO

Three MEMS microphone array with Fraunhofer upHear® Spatial microphone processing

EXTERNAL AUDIO INPUT

Directly into 3.5mmTRS audio input
Via USB Audio interface to USB-C connector
Via mic plugged into mobile device
Via the Mevo Go App

AUDIO CODEC

AAC - 48kHz, 16-bit

PROCESSOR & ENCODER (SOC)

Ambarella H22S85

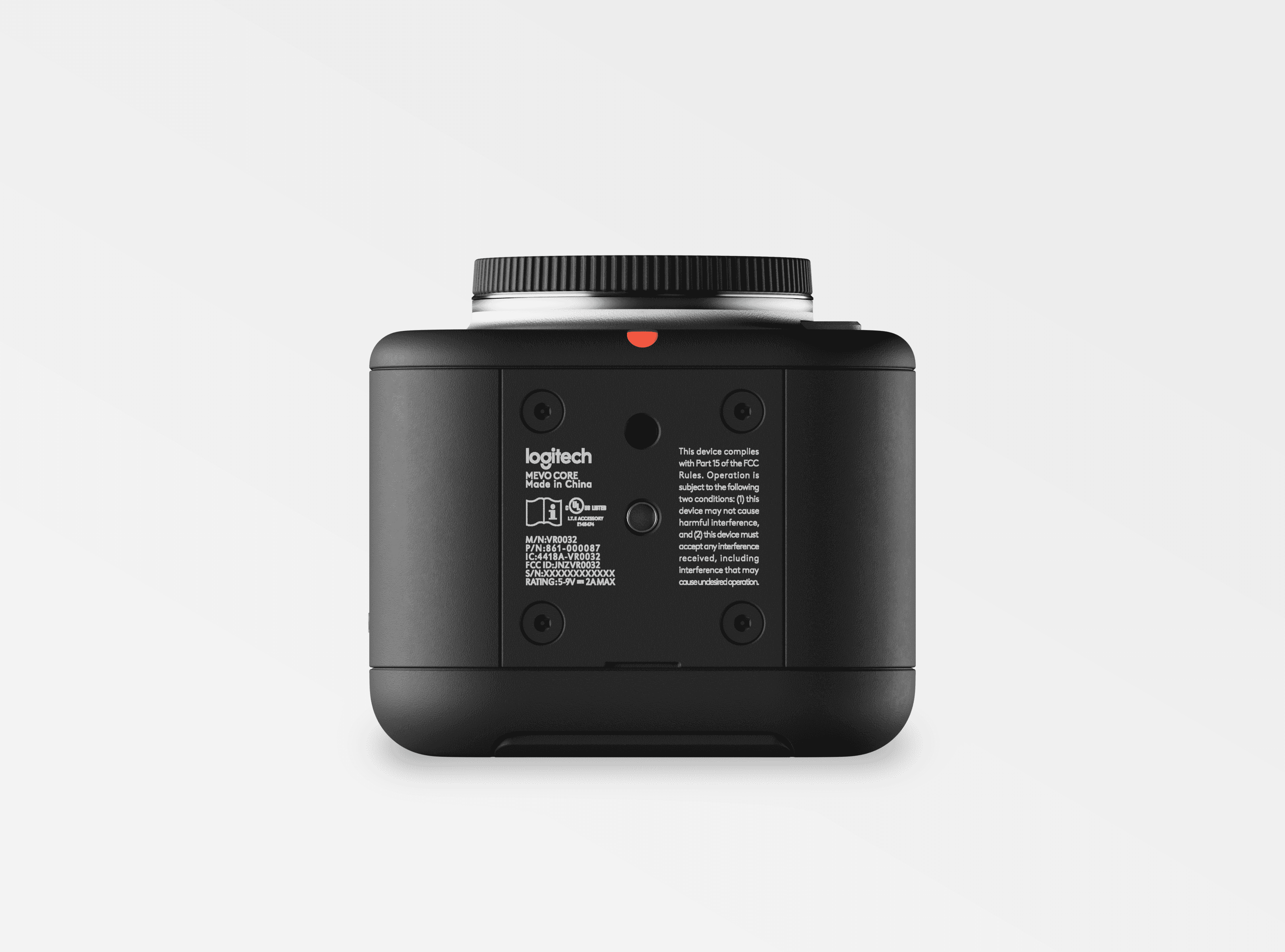

MOUNTING

4x ¼-20; one on each side
Side ¼-20 also have Small Rig cold shoe anti-torque threads
Bottom has anti-torque pin recess

MEMORY CARD COMPATIBILITY

microSD (UHC class U3 speed)

MEMORY INCLUDED

No

HEIGHT

3.25in (8.24cm)

WIDTH / DIAMETER

3.5in (9cm)

LENGTH

3.5in (9cm)

WEIGHT

1.5lbs (700g) with battery installed

COLOR

Black

OPERATING TEMPERATURE

0 - 35 degrees C

WATER RESISTANT

No

SPEAKER

Buzzer

BUTTON

Power button with 4x LED battery gauge. To power on-off, start/stop streaming and/or recording (configurable)

Lens Release Button

INDICATOR

2x RGB Tally lights in Front

INCLUDED ACCESSORIES

USB-C to USB-C Charging cable

LANGUAGE

English

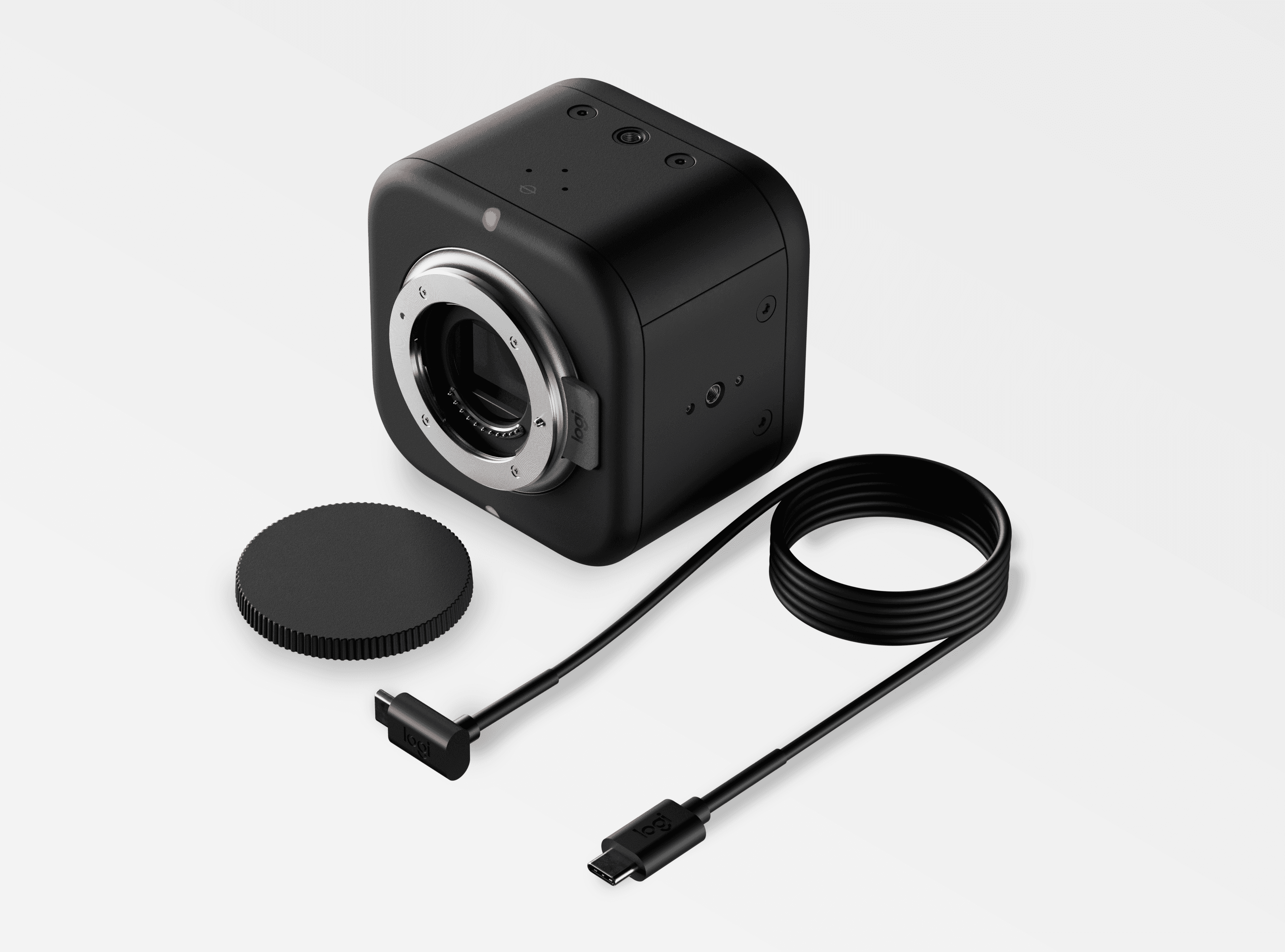

WHAT'S IN THE BOX?
Whats in the box
INCLUDED

1x

Mevo Core Camera

1x

6.5ft (2m) USB-C to USB-C cable

1x

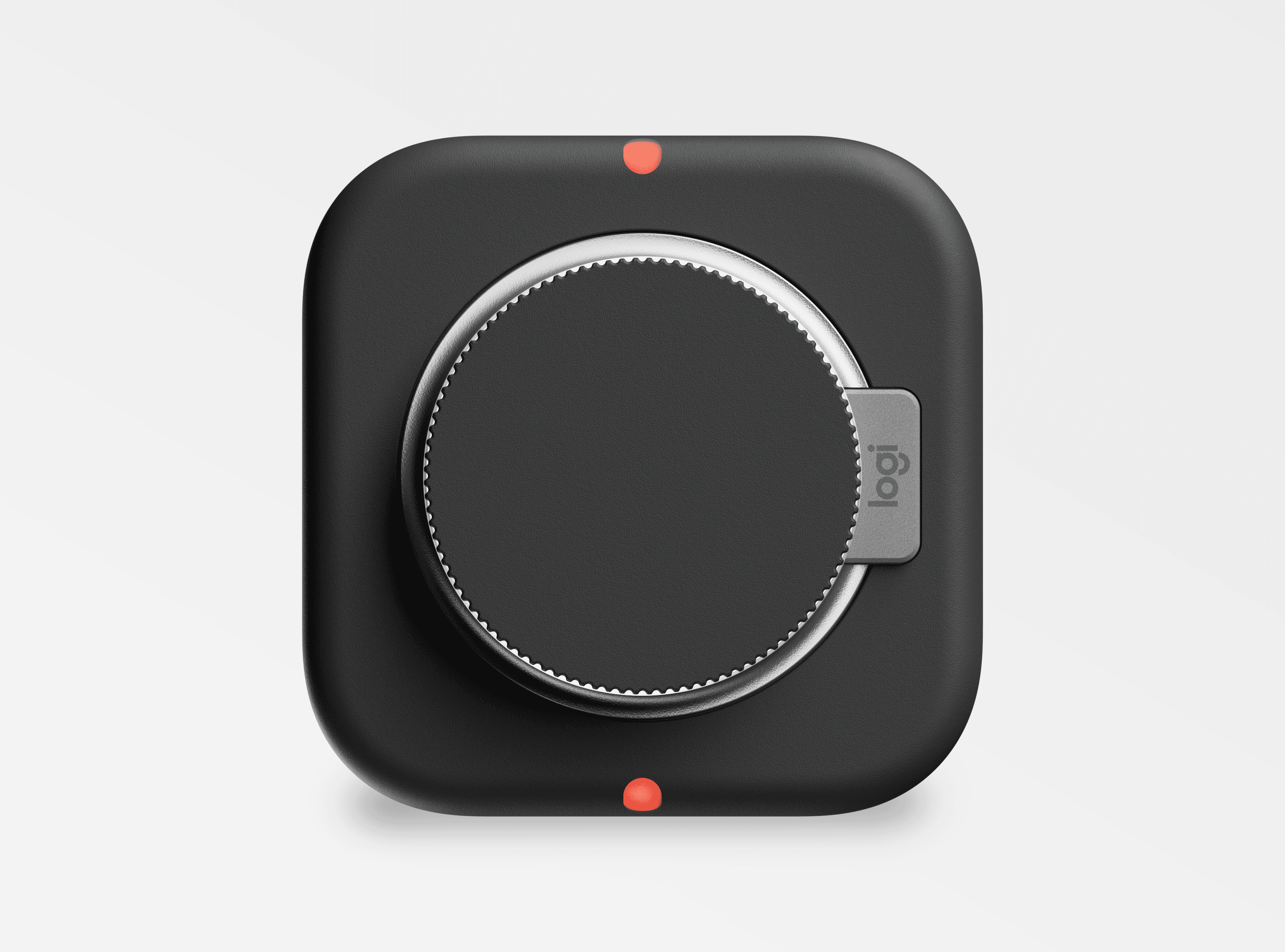

Lens cap
